As a supplier of 2 core shielded twisted pair cables, I often encounter inquiries about the suitability of our products for outdoor use. This blog post aims to provide a comprehensive analysis of whether a 2 core shielded twisted pair cable is a good choice for outdoor applications, considering various factors such as environmental conditions, electrical performance, and durability.
Understanding the Basics of 2 Core Shielded Twisted Pair Cables
A 2 core shielded twisted pair cable consists of two insulated conductors that are twisted together and surrounded by a shielding layer. The twisting helps to reduce electromagnetic interference (EMI) and radio frequency interference (RFI), while the shielding provides additional protection against external electrical noise. These cables are commonly used in telecommunications, networking, and audio/video applications where signal integrity is crucial.
Factors to Consider for Outdoor Use
When evaluating the suitability of a 2 core shielded twisted pair cable for outdoor use, several key factors need to be taken into account:
Environmental Conditions
Outdoor environments can be harsh, with exposure to extreme temperatures, moisture, sunlight, and physical damage. The cable must be able to withstand these conditions without degradation of its electrical and mechanical properties. For example, in cold climates, the cable's insulation and jacket materials should remain flexible to prevent cracking and breakage. In hot and humid environments, the cable should resist moisture absorption and corrosion.
Electrical Performance
The electrical performance of the cable is also critical for outdoor applications. The cable should have low attenuation (signal loss) and high impedance to ensure reliable signal transmission over long distances. Additionally, the shielding effectiveness should be sufficient to protect the signal from external interference, especially in areas with high levels of electromagnetic noise, such as near power lines or industrial equipment.
Durability
Outdoor cables are subject to physical stress from installation, handling, and environmental factors. The cable should have a robust construction and a durable jacket to resist abrasion, impact, and UV radiation. A thick and tough jacket material, such as polyethylene or polyurethane, can provide better protection against mechanical damage.
Advantages of Using 2 Core Shielded Twisted Pair Cables Outdoors
Despite the challenges of outdoor use, 2 core shielded twisted pair cables offer several advantages:
EMI and RFI Protection
The shielding layer in the cable provides excellent protection against electromagnetic and radio frequency interference, which is particularly important in outdoor environments where there may be a lot of electrical noise. This helps to ensure reliable signal transmission and reduces the risk of data loss or signal degradation.
Flexibility and Ease of Installation
2 core shielded twisted pair cables are relatively flexible and easy to install, making them a convenient choice for outdoor applications. They can be easily routed through conduits, trenches, or overhead structures, and can be terminated using standard connectors.
Cost-Effectiveness
Compared to other types of cables, such as fiber optic cables, 2 core shielded twisted pair cables are generally more cost-effective. This makes them a popular choice for outdoor networking and telecommunications applications where budget is a consideration.
Limitations of Using 2 Core Shielded Twisted Pair Cables Outdoors
While 2 core shielded twisted pair cables have many advantages, they also have some limitations when used outdoors:
Limited Distance
The maximum transmission distance of 2 core shielded twisted pair cables is limited compared to fiber optic cables. For Ethernet applications, the maximum distance is typically around 100 meters. This may not be sufficient for some outdoor applications, such as long-distance networking or surveillance systems.
Susceptibility to Lightning
Outdoor cables are more vulnerable to lightning strikes, which can cause significant damage to the cable and the connected equipment. While the shielding layer in the cable can provide some protection against lightning-induced surges, additional lightning protection devices may be required in areas with high lightning activity.
Moisture and Water Resistance
Although some 2 core shielded twisted pair cables are designed to be water-resistant, they may not be suitable for use in wet or submerged environments. Prolonged exposure to water can cause the insulation to degrade, leading to signal loss and electrical shorts.
Choosing the Right 2 Core Shielded Twisted Pair Cable for Outdoor Use
To ensure the best performance and reliability of a 2 core shielded twisted pair cable in outdoor applications, it is important to choose the right cable for the specific requirements. Here are some key considerations:
Cable Rating
Look for cables that are specifically rated for outdoor use. These cables are typically designed to withstand harsh environmental conditions and have a higher level of moisture and UV resistance.
Jacket Material
Choose a cable with a durable jacket material, such as polyethylene or polyurethane, that can resist abrasion, impact, and UV radiation. The jacket should also be water-resistant and have a low coefficient of friction for easy installation.
Shielding Effectiveness
The shielding effectiveness of the cable is an important factor in reducing electromagnetic interference. Look for cables with a high shielding coverage and a low transfer impedance.
Temperature Range
Consider the temperature range of the outdoor environment where the cable will be installed. Choose a cable that can operate within the expected temperature range without degradation of its electrical and mechanical properties.
Our Product Offerings
As a leading supplier of 2 core shielded twisted pair cables, we offer a wide range of products that are suitable for outdoor use. Our cables are designed to meet the highest industry standards and are manufactured using high-quality materials and advanced production techniques.

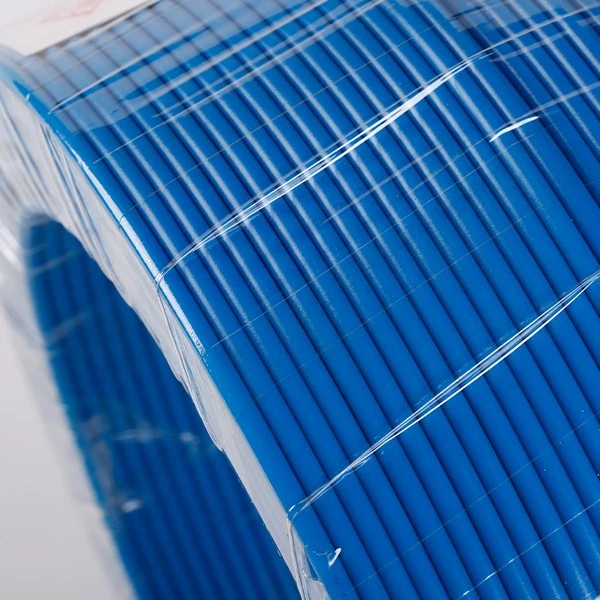

In addition to our 2 core shielded twisted pair cables, we also offer a variety of other cables, including Multi Core Electrical Cable, Fire-Resistant Copper Conductor PVC Insulation Home Electrical Cable, and Flame Retardant Stranded Copper Core PVC Insulated Cable. These cables are suitable for a wide range of applications, including indoor and outdoor electrical wiring, telecommunications, and networking.
Contact Us for Purchase Inquiries
If you are interested in purchasing our 2 core shielded twisted pair cables or any of our other products, please do not hesitate to contact us. Our team of experts will be happy to assist you in selecting the right cable for your specific needs and provide you with a competitive quote. We look forward to working with you and helping you to achieve your project goals.
